Trees for structure and support in Python

class: top, left, title-slide

# Trees for structure and support in Python
## PyCon Limerick 2020
### Stephen McEntee
### 2020-02-29

---

# Introduction

### About the speaker

* I'm a chartered mechanical engineer
* 20+ years' experience working in oil & gas subsea engineering
* 15+ years' experience programming in Python
  * also Fortran, Perl, Julia ...
* Presented at PyCon Ireland 2019
  * [pflacs: Faster loadcases and parameter studies](https://qwilka.github.io/talk/2019-10-12_pycon2019/)
* Own start-up company [Qwilka](https://qwilka.github.io/)
  * developing software for data management and analytics
  * targeting unstructured engineering data

???

### References, links

1. Title page photo by [Luke Richardson](https://unsplash.com/s/photos/luke-richardson) on [Unsplash](https://unsplash.com/).

---
name: visinum
class: notitletop

???

### References, links

1. https://qwilka.github.io/
1. https://github.com/qwilka/data-visualizer-2015
1. https://github.com/qwilka/metadata-manager-2015

---

# Introduction

### About the presentation

This presentation is a high-level overview of tree data structures in computing.

With some lower-level details in Python.

### Presentation sides

* Link to slides https://qwilka.github.io/PyCon_Limerick_2020/
* The slides are created with [xaringan](https://slides.yihui.org/xaringan).
  * Press **h** for slides help.

### Resources

* GitHub repository with example code:
  * https://github.com/qwilka/PyCon_Limerick_2020
* Links to resources, references, source code, etc., are in the presentation speaker notes.
  * Press **p** to see speaker notes.

???

### References, links

1. [xaringan](https://github.com/yihui/xaringan) create slideshows with [remark.js](http://remarkjs.com/) and [R Markdown](https://bookdown.org/yihui/rmarkdown/xaringan.html).

---

# Tree data structure

.pull-left[
* A 'tree' is an connected, ordered, hierarchical data structure
* Trees consist of units called `nodes`
* Each node is connected to <u>one</u> `parent` node in the level above
  * the `root` (base) node uniquely has no parent
* A node can be connected to any number of `child` nodes in the level below
  * Nodes without children are called `leaf` nodes
* Trees are recursive, each child node is a sub-tree itself
]

.pull-right[

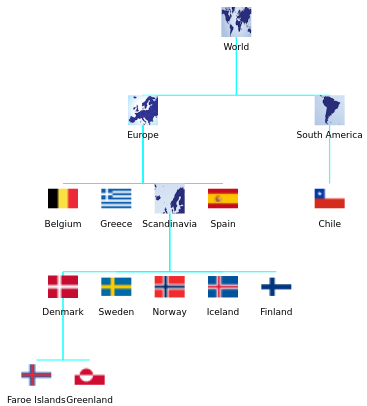

  ![World selection tree](assets/world-selection-tree.png)
]

???

* a lot of data falls naturally into a hierarchical tree structure.
  * countries and states
  * Organizational charts - organograms https://en.wikipedia.org/wiki/Organizational_chart
* Even data that isn't fully *tree*-compliant can be transformed into a tree structure:
  * social and political structures
  * family tree

### References, links

1. [World selection tree](https://github.com/qwilka/PyCon_Limerick_2020/tree/master/examples/Vega) image created with [Vega](https://vega.github.io/vega/docs/transforms/tree/)

---

# Example tree

![World selection tree](assets/world-selection-tree-full.png)

---

# Example tree

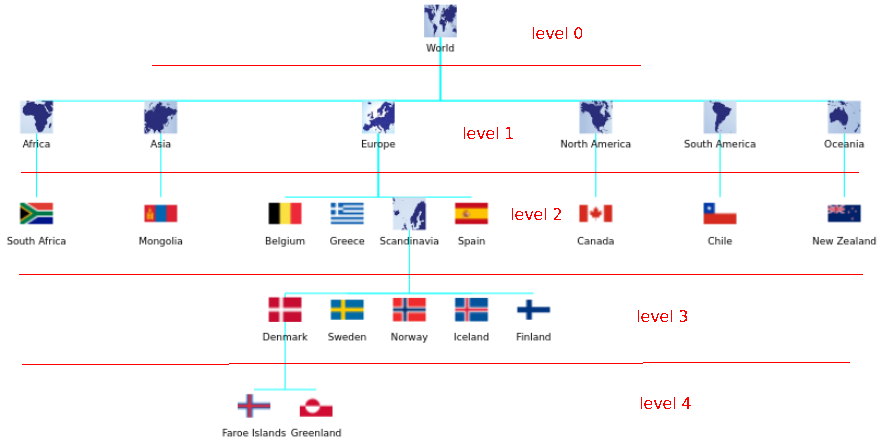

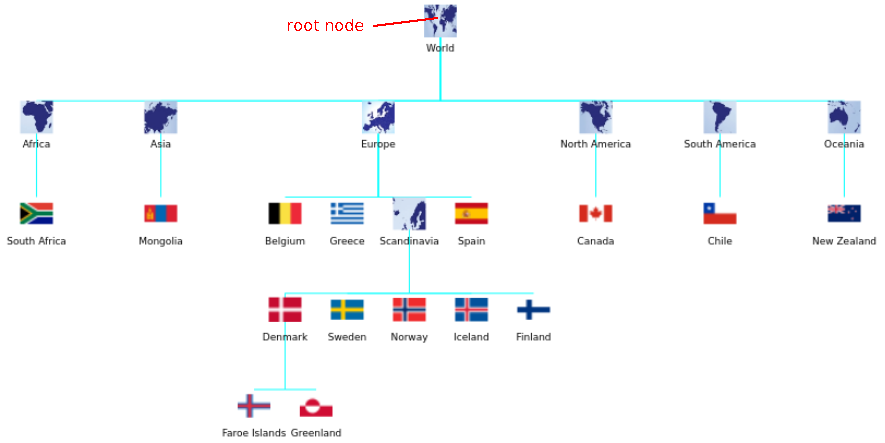

![root node](assets/world-selection-tree-full-1.png)

---

# Example tree

![root node](assets/world-selection-tree-full-2.png)

---

# Example tree

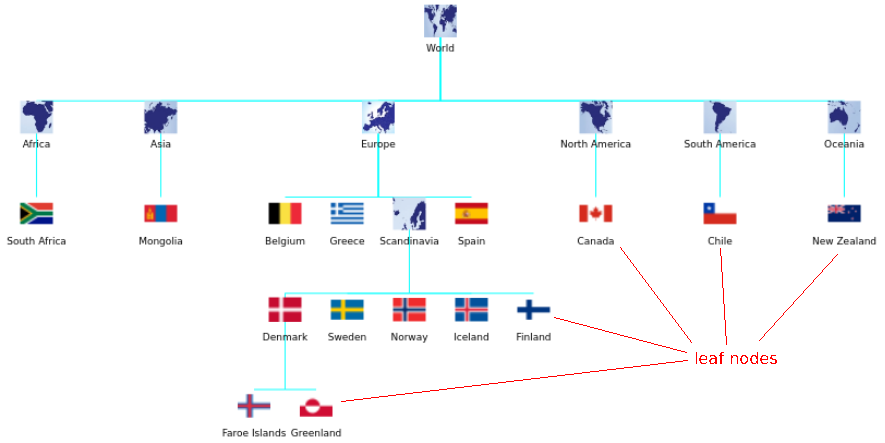

![root node](assets/world-selection-tree-full-3.png)

---

# Example tree

![root node](assets/world-selection-tree-full-4.png)

---

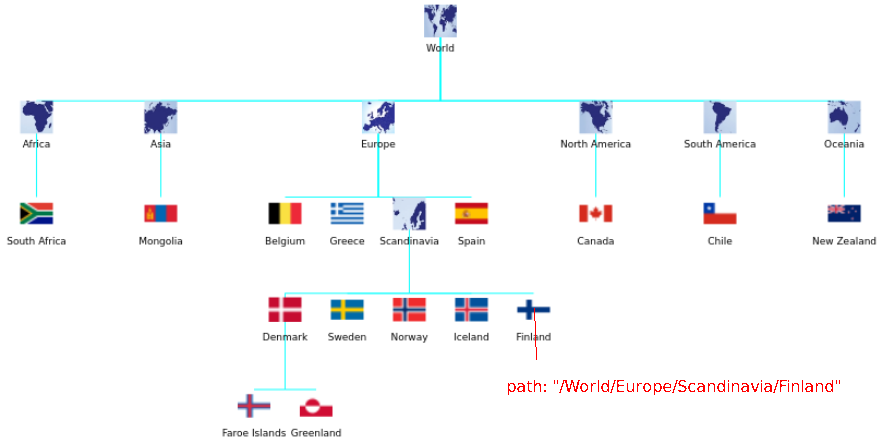

# Example tree

![root node](assets/world-selection-tree-full-5.png)

---

# Example tree

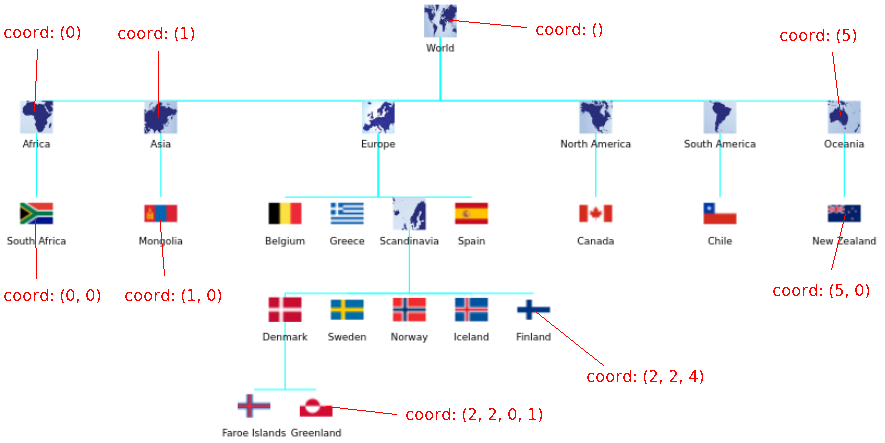

![root node](assets/world-selection-tree-full-6.png)

---

# Tree modules in Python

* [anytree](https://github.com/c0fec0de/anytree)
  * simple, lightweight and extensible tree data structure

* [treelib](https://github.com/caesar0301/treelib)
  * an efficient implementation of tree data structure in python 2/3

* [vntree](https://github.com/qwilka/vntree) (presenter's own module)
  * a simple tree data structure in Python
  * development still in alpha-phase

???

### References, links

1. anytree https://github.com/c0fec0de/anytree
1. treelib https://github.com/caesar0301/treelib
1. vntree https://github.com/qwilka/vntree

---

# A very basic list-based tree

.pull-left[
```python
rootnode = list()

europe = list()
rootnode.append(europe)

europe.append("Belgium")
europe.append("Greece")

scandinavia = list()
europe.append(scandinavia)
europe.append("Spain")

denmark = list()
scandinavia.append(denmark)
scandinavia.extend(["Norway", "Sweden", "Iceland", "Finland"])

denmark.extend(["Faroe Islands", "Greenland"])

samerica = list()
rootnode.append(samerica)
samerica.append("Chile")
```
]

.pull-right[
```python
pprint.pprint(rootnode, indent=2, width=40)

[ [ 'Belgium',
    'Greece',
    [ ['Faroe Islands', 'Greenland'],
      'Norway',
      'Sweden',
      'Iceland',
      'Finland'],
    'Spain'],
  ['Chile']]

```
]

???

$ python list_tree_simple.py

### References, links

1. https://github.com/qwilka/PyCon_Limerick_2020/blob/master/examples/list_tree_simple.py

---

# List tree with data

`list-node API: [<node name>: str, <data>: any, <child node>: list-node, ...]`

```python
>>> root = ["The World", {"population":7762609412}] # define tree root node
>>> europe = ["Europe", {"population":737000000}]  # define 1st child node
>>> root.append(europe)  # append 1st child node to root node
>>> namerica = ["North America", {"population":367914615}] # define 2nd child node
>>> root.append(namerica)  # append 2nd child node to root node
>>> scandinavia = ["Scandinavia", {"population":31000000}]
>>> europe.append(scandinavia)
>>> scandinavia.append( ["Denmark", {"population":5792202}] )
>>> scandinavia.append( ["Sweden", {"population":10099265}] )
>>> namerica.append( ["Canada", {"population":37742154}] )
```

```python
>>> pprint.pprint(root, indent=4, compact=True)
[   'The World', {'population': 7762609412},
    [   'Europe', {'population': 737000000},
        [   'Scandinavia', {'population': 31000000},
            ['Denmark', {'population': 5792202}],
            ['Sweden', {'population': 10099265}]]],
    [   'North America', {'population': 367914615},
        ['Canada', {'population': 37742154}]]]
```

???

### References, links

$ python list_tree_with_data.py

1. https://github.com/qwilka/PyCon_Limerick_2020/blob/master/examples/list_tree_with_data.py

---

# One Line Tree

.pull-left[
```python
from collections import defaultdict

*def tree(): return defaultdict(tree)

root = tree()
root["The World"]
root["The World"]["population"] = 7762609412
root["The World"]["Europe"]
root["The World"]["Europe"]["Scandinavia"]
root["The World"]["Europe"]["Scandinavia"]["Denmark"]
root["The World"]["Europe"]["Scandinavia"]["Denmark"]["population"] = 5792202
root["The World"]["Europe"]["Scandinavia"]["Sweden"]
root["The World"]["Europe"]["Scandinavia"]["Sweden"]["population"] = 10099265
root["The World"]["North America"]
root["The World"]["North America"]["Canada"]
root["The World"]["North America"]["Canada"]["population"] = 37742154

import json
print(json.dumps(root, indent=2))
```
]

.pull-right[

```
{
  "The World": {
    "population": 7762609412,
    "Europe": {
      "Scandinavia": {
        "Denmark": {
          "population": 5792202
        },
        "Sweden": {
          "population": 10099265
        }
      }
    },
    "North America": {
      "Canada": {
        "population": 37742154
      }
    }
  }
}
```
]

???

$ python one_line_tree.py

### References, links

1. GitHub Gist [hrldcpr/tree.md](https://gist.github.com/hrldcpr/2012250) «One-line Tree in Python»
1. [Jeff Khupp 2013 article](https://jeffknupp.com/blog/2013/02/14/drastically-improve-your-python-understanding-pythons-execution-model/) describes a similar "auto-vivifying dictionary that operates like a trie"
1. https://github.com/qwilka/PyCon_Limerick_2020/blob/master/examples/one_line_tree.py

---

# A linked list in Python

.pull-left[
```python
class LLnode:
  def __init__(self, value, prev):
    self.prev = prev
    if prev:
        prev.append(self)
    self.next = ()
    self.value = value

def append(self, newnode):
    self.next = newnode
    return newnode

def __iter__(self):
      ...

def __reversed__(self):
      ...

def show(self):
      ...
```
]

.pull-right[

```python
>>> first = LLnode('First Node', None)
>>> sec = LLnode('Second Node', first)
>>> third = LLnode(3, sec)
>>> third.append( LLnode(4.0, None) )
<examples.linked_list.LLnode object at 0x7f6d1ce85cd0>
```
{{content}}
]

```python
>>> for node in first:
>>>     print(node.value)
First Node
Second Node
3
4.0
```
{{content}}

```python
>>> for node in reversed(first):
>>>     print(node.value)
4.0
3
Second Node
First Node
```
{{content}}

???

### References, links

$ python linked_list.py

1. [Linked list](https://en.wikipedia.org/wiki/Linked_list) article on Wikipedia.
1. [linked_list.py](https://github.com/qwilka/PyCon_Limerick_2020/blob/master/examples/linked_list.py) source code on Github.

---

# Linked List - usage example

```python
>>> root = LLnode('Stephen Dedalus', None)
>>> root.append(LLnode('Class of Elements')).append(LLnode('Clongowes Wood College')).append(LLnode('Sallins')).append(LLnode('County Kildare')).append(LLnode('Ireland')).append(LLnode('Europe')).append(LLnode('The World')).append(LLnode('The Universe'))
<examples.linked_list.LLnode object at 0x7f6d1ce95f10>
```

```python
>>> root.show()
|-- Stephen Dedalus
    +-> Class of Elements
        +-> Clongowes Wood College
            +-> Sallins
                +-> County Kildare
                    +-> Ireland
                        +-> Europe
                            +-> The World
                                +-> The Universe
```

- A linked list is a degenerate tree, following a single line of decent.

- It could be considered as a 'vertical' data structure.

- By contrast, an array could be regarded as a 'horizontal' data structure.

---

# A basic tree Node class

.pull-left[
```python
class Node:
  def __init__(self, name, parent, data=None):
    self.name = name
    self.children = []
    self.parent = parent
    if parent: parent.add_child(self)
    self.data = data

def add_child(self, newnode):
    self.children.append(newnode)
    newnode.parent = self
    return newnode

def remove_child(self, idx):
    return self.children.pop(idx)

def copy(self):
    return copy.deepcopy(self)

def show(self):
      ...
```
]

.pull-right[

```python
>>> root = Node('Root node', None)
>>> child1 = Node('First child', root)
>>> child2 = Node('2nd child', root, {"n":123})
>>> child1.add_child( Node("grand-child", None, {}) )
<vntree.node.Node object at 0x7f6d1ce7b710>
```
{{content}}
]

```python
>>> root.show()
| Root node
+--| First child
.  +--| grand-child
.  | 2nd child
```
{{content}}

```python
>>> for node in root:
>>>     print(node.name)
Root node
First child
grand-child
2nd child
```
{{content}}

???

### References, links

1. [Tree](https://en.wikipedia.org/wiki/Tree_%28data_structure%29) article on Wikipedia.
1. [simple_tree.py](https://github.com/qwilka/PyCon_Limerick_2020/blob/master/examples/simple_tree.py) source code on Github.

---

# Node class \_\_iter\_\_ method

```python
import itertools

class Node:
  ...

def __iter__(self):
      yield self
      for node in itertools.chain(*map(iter, self.children)):
          yield node
```

```python
$ python examples/simple_tree.py topdown

:self: «The World»
Node «The World» level=0 coord=()
:self: «Europe»
:0: «Europe» «The World»
Node «Europe» level=1 coord=(0,)
:self: «Belgium»
:0: «Belgium» «Europe»
:1: «Belgium» «The World»
Node «Belgium» level=2 coord=(0, 0)
:self: «Greece»
:1: «Greece» «Europe»
:2: «Greece» «The World»
Node «Greece» level=2 coord=(0, 1)
:self: «Scandinavia»
```

???

$ python simple_tree.py topdown

---

# Dataclass Tree

.pull-left[
```python
from dataclasses import dataclass, field
from typing import List, Dict, Any

@dataclass
class DataclassNode:
    name: str
    children: List[Any] = field(default_factory=lambda : [])
    data: Dict = field(default_factory=lambda : {})

def add_child(self, childnode):
        self.children.append(childnode)
        return childnode

    def show(self, indent=2, _pre=""):
        print(_pre + self.name)
        for _c in self.children:
            _c.show(indent, _pre=_pre+" "*indent)
```
]

.pull-right[
```python
root = DataclassNode("World", data={"population":7762609412})
europe = root.add_child( DataclassNode("Europe") )
scandinavia = europe.add_child( DataclassNode("Scandinavia") )
scandinavia.add_child( DataclassNode("Denmark", data={"population":5792202}) )
scandinavia.add_child( DataclassNode("Sweden", data={"population":10099265}) )
scandinavia.add_child( DataclassNode("Norway", data={"population":5421241}) )
namerica = root.add_child( DataclassNode("North America") )
namerica.add_child( DataclassNode("Canada", data={"population":37742154}) )
root.show()
```
{{content}}
]

```python
World
  Europe
    Scandinavia
      Denmark
      Sweden
      Norway
  North America
    Canada
```
{{content}}

???

### References, links

$ python dataclass_tree.py

1. https://github.com/qwilka/PyCon_Limerick_2020/blob/master/examples/dataclass_tree.py

---

# Tree from dictionary (with vntree)

.pull-left[
```python
theworld = {"name":"The World",
  "childs" : [
    {
      "name": "Europe",
      "childs": [
        {
          "name": "Belgium",
          "data": {
              "capital": "Brussels",
              "population": 11515793
          }
        },
        {
          "name": "Greece",
          "data": {
              "capital": "Athens",
              "population": 10768477
          }
        },
...
]]}
```
]

.pull-right[
```python
from vntree import Node
dicttree = Node(treedict=theworld)
dicttree.show()
```
{{content}}
]

???

### References, links

$ python json_import.py

1. https://github.com/qwilka/PyCon_Limerick_2020/blob/master/examples/vntree/json_import.py

---

# Tree from JSON (vntree)

.pull-left[
```python
dicttree.to_json("countries.json")

jsontree = Node.from_json("countries.json")
jsontree.show()
```
{{content}}
]

.pull-right[
```python
comp = dicttree.tree_compare(jsontree)
print("jsontree round-trip",
f"\ncomparison with dicttree = {comp}")
```

```
jsontree round-trip
comparison with dicttree = 1.0
```

]

---

# Tree from YAML (vntree)

.pull-left[
```yaml
- !Node &world
  name: The World

- !Node &europe
  name: Europe
  parent: *world

- !Node &belgium
  name: Belgium
  parent: *europe
  data:
    capital: Brussels
    population: 11515793

- !Node &scandinavia
  name: Scandinavia
  parent: *europe

- !Node &denmark
  parent: *scandinavia
  data:
    capital: Copenhagen
    name: Denmark
    population: 5822763
```
]

.pull-right[
```python
from vntree import Node
rootnode = Node.yaml2tree("countries.yaml")
rootnode.show()
```
{{content}}
]

???

### References, links

$ python yaml_import.py

1. https://github.com/qwilka/PyCon_Limerick_2020/blob/master/examples/vntree/yaml_import.py

---

# GUI widget - tkinter ttk.Treeview

.pull-left[
```python
from tkinter import *
from tkinter.ttk import *

app = Tk()
tree = Treeview(app)  # tkinter.ttk

root = tree.insert("", 0, text="The World")
europe = tree.insert(root, "end", text="Europe")
tree.insert(europe, "end", text="Belgium", values=("Brussels", 11515793))
tree.insert(europe, "end", text="Greece", values=("Athens", 10768477))
scandinavia = tree.insert(europe, "end", text="Scandinavia")
denmark = tree.insert(scandinavia, "end", text="Denmark", values=("Copenhagen", 5822763))
tree.insert(denmark, "end", text="Faroe Islands")
...

tree.pack(fill=BOTH, expand=True)
app.mainloop()
```
]

.pull-right[
  ![examples/tkinter/ttk_treeview_basic.py](assets/ttk_treeview.png)
]

???

### References, links

% python ttk_treeview_basic.py

1. https://github.com/qwilka/PyCon_Limerick_2020/blob/master/examples/tkinter/ttk_treeview_basic.py
1. https://github.com/qwilka/PyCon_Limerick_2020/blob/master/examples/tkinter/ttk_treeview_OO.py

---

# PyQt widget - QTreeWidget

.pull-left[
```python
import sys
from PyQt5.QtWidgets import QTreeWidget, QTreeWidgetItem, QApplication, QWidget, QVBoxLayout

app = QApplication(sys.argv)

tree = QTreeWidget()
...

root = QTreeWidgetItem(tree, ['The World'])
europe = QTreeWidgetItem(root, ['Europe'])
QTreeWidgetItem(europe, ['Belgium', "Brussels", "11515793"])
...

sys.exit(app.exec_())
```
]

.pull-right[

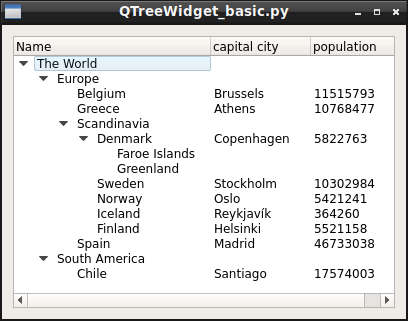

  ![examples/examples/PyQt/QTreeWidget_example.py](assets/QTreeWidget_example.png)
]

???

### References, links

1. https://github.com/qwilka/PyCon_Limerick_2020/blob/master/examples/PyQt/QTreeWidget_basic.py
1. https://github.com/qwilka/PyCon_Limerick_2020/blob/master/examples/PyQt/QTreeWidget_OO.py
1. https://www.riverbankcomputing.com/static/Docs/PyQt5/

---

# PyQt widget - QTreeView

.pull-left[
```python
from PyQt5.QtWidgets import QTreeView, QApplication
from PyQt5.QtCore import QAbstractItemModel, QModelIndex, Qt

class Node:
  def __init__(self, name, parent=None)
  ...

class TreeModel(QAbstractItemModel):
  def __init__(self, rootNode, parent=None)
  ...

app = QApplication(sys.argv)

rootnode = Node("The World")
europe = Node("Europe", rootnode)
Node("Belgium", europe)
...
model = TreeModel(rootnode)

treeView = QTreeView()
treeView.setModel(model)

sys.exit(app.exec_())
```
]

.pull-right[

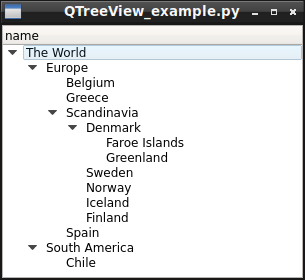

  ![examples/PyQt/QTreeView_example.py](assets/QTreeView_example.png)
]

???

### References, links

1. https://github.com/qwilka/PyCon_Limerick_2020/blob/master/examples/PyQt/QTreeView_example.py
1. Yasin Uludag tutorial Series on PyQt4 MVC https://www.youtube.com/view_play_list?p=8B63F2091D787896
1. https://doc.qt.io/qt-5/model-view-programming.html

---

# Decision Tree

.pull-left[

* Tree analysis for decision support
* Based on calculating `expected value` for outcomes
  * EV = NPV * probability
  * consider full range of outcomes
* Best for portfolio of similar assets
  * Risk management
{{content}}
]
--

```python
class DecisionNode(Node):
  def __init__(self, name, parent=None, type="outcome", p=1, npv=0):
  ...
  @staticmethod
  def calculate_ev(node):
  ...

root = DecisionNode("Acquire and drill | Do not acquire?", type="decision")
DecisionNode("Do not acquire lease", root, npv=0)
acq = DecisionNode("Acquire and drill", root, type="chance")
tw1 = DecisionNode("Large field", acq, p=0.05, npv=360)
...
```

.pull-right[
```python
list(map(rootnode.calculate_ev, reversed(rootnode)))
print(rootnode.to_texttree())

□---Acquire and drill | Do not acquire?; DECISION: «Acquire and drill»
    |
.   |---Do not acquire lease; p=1; NPV=0; EV=0
.   ◯---Acquire and drill; EV=15.625
.   .   ▷---Large field; p=0.05; NPV=360; EV=18.0
.   .   ▷---Marginal field; p=0.05; NPV=110; EV=5.5
.   .   ▷---Dry hole; p=0.9; NPV=-8.75; EV=-7.875
            |
.   .   .   □---Drill test well #2 | drop?; DECISION: «Drill test well #2»
                |
.   .   .   .   ◯---Drill test well #2; EV=-8.75
.   .   .   .   .   ▷---Large field; p=0.075; NPV=350; EV=26.25
.   .   .   .   .   ▷---Marginal field; p=0.075; NPV=100; EV=7.5
.   .   .   .   .   ▷---Dry hole; p=0.85; NPV=-50; EV=-42.5
.   .   .   .   |---Drop; p=1; NPV=-40; EV=-40
```

]

???

### References, links

$ python decision_tree.py

1. https://en.wikipedia.org/wiki/Decision_tree
1. [Decision Analysis in Cost Engineering](http://www.maxvalue.com/DA_in_CE_20170329.pdf) John Schuyler, 2015

---

# Geo-spatial trees

.pull-left[
* Quadtree
  * recursively divides a square area into 4 sub-domains
  * used for 2-D spatial search
  * `Pyqtree` pure Python module
  * «octree» used for 3-D
* R-tree
  * used for 2-D spatial search
  * Python module `Rtree` (wraps libspatialindex)
  * `rbush` (Javascript module)
* scipy.spatial.KDTree
]

.pull-right[
  ![Quadtree](assets/Quad_tree_bitmap.svg.png)

![R-tree](assets/800px-R-tree.svg.png)
]

???

### References, links

$ python decision_tree.py

1. Quadtree image https://commons.wikimedia.org/wiki/File:Quad_tree_bitmap.svg
1. R-tree image by Skinkie, w:en:Radim Baca - Own work, Public Domain, https://commons.wikimedia.org/w/index.php?curid=9938400
1. https://en.wikipedia.org/wiki/Quadtree
1. https://github.com/karimbahgat/Pyqtree  Karim Bahgat
1. https://en.wikipedia.org/wiki/R-tree
1. https://github.com/Toblerity/Rtree  Toblerity project
1. https://github.com/mourner/rbush  Vladimir Agafonkin
1. https://docs.scipy.org/doc/scipy/reference/generated/scipy.spatial.KDTree.html

---

# Data management and analysis

.pull-left[
* vntree.mongo.MongoNode
  * tree stored in MongoDB
  * each node is a db document
  * used in [Visinum](#visinum) data platform

{{content}}
]

* `pflacs` Python module
  * faster loadcases and parameter studies
  * Python functions patched into object structures
  * vntree based classes
  * `pflacs.Premise` nodes for grouping data attributes
  * `pflacs.Calc` nodes for computations

???

### References, links

1. https://github.com/qwilka/pflacs
1. pflacs at PyCon Ireland 2019 https://qwilka.github.io/talk/2019-10-12_pycon2019/
1. Visinum https://qwilka.github.io/

---

# in conclusion

.pull-left[
* Tree data structures are an effective way to organise data in applications
{{content}}
]

* Many ways to create trees in Python
  * `Node` based trees are the canonical form

* `vntree` is a Python module providing a `Node` based tree

.pull-right[
```python
rootnode.show()

---
class: middle, center, notitletop
background-image: url(assets/Darwin_Tree_1837.png)
background-size: cover

.large[**https://qwilka.github.io/PyCon_Limerick_2020/**]

???

### References, links

1. General references.
